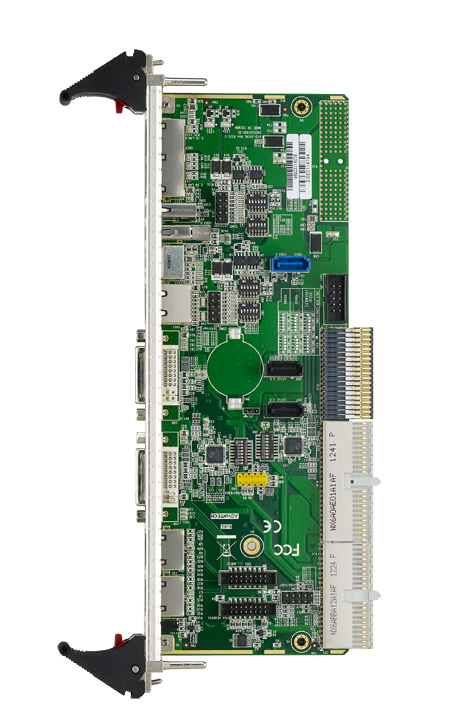

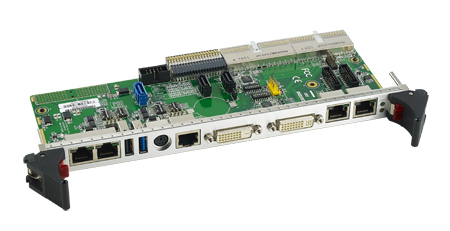

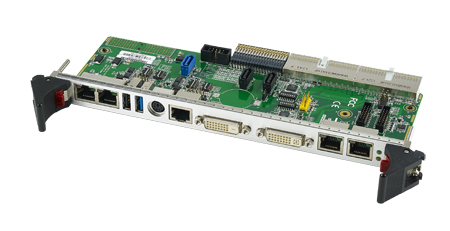

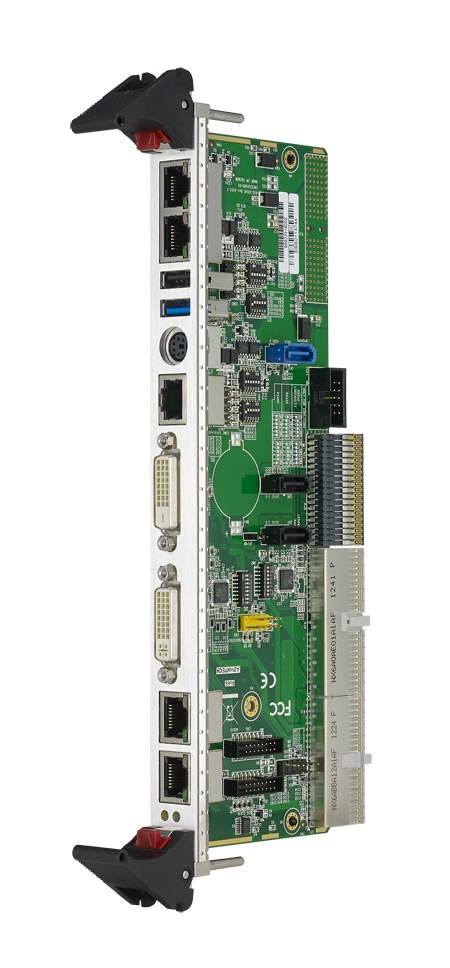

RIO-3316

產(chǎn)品分類(lèi)：6u CompactPCI板
External rear-panel interface connector for the MIC-3396 CPU board
Supports SATA Gen III, USB 2.0, USB 3.0, GbE, PS/2, COM and DVI, interface
2x SATA pin headers

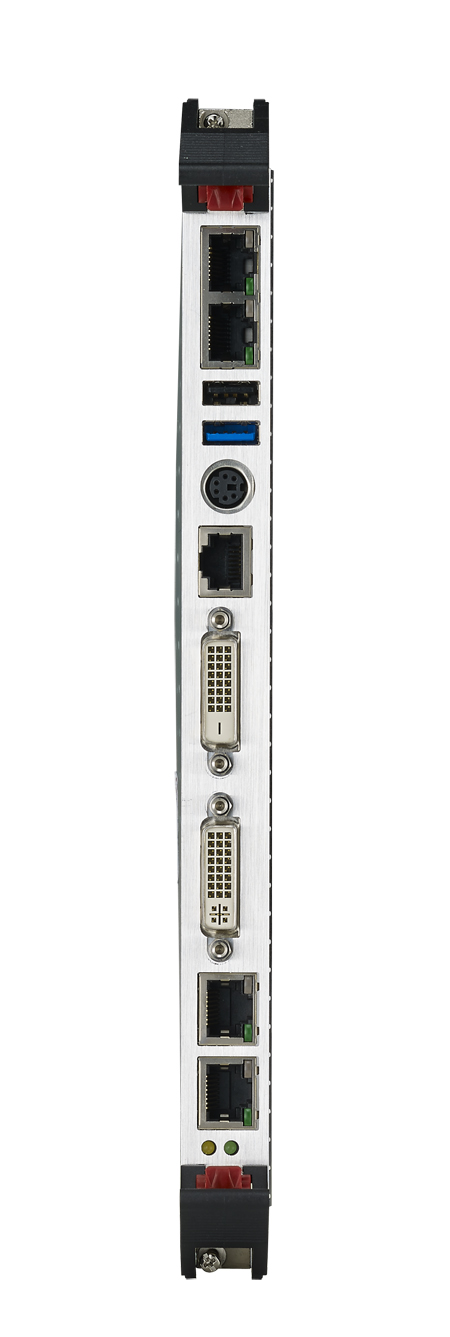

2x RJ45 GbE and 2x PICMG 2.16 LAN ports on the rear panel
1x digital and 1x analogue DVI ports on the rear panel
1x UHM connector to support USB 3.0 and SATA Gen III signal
