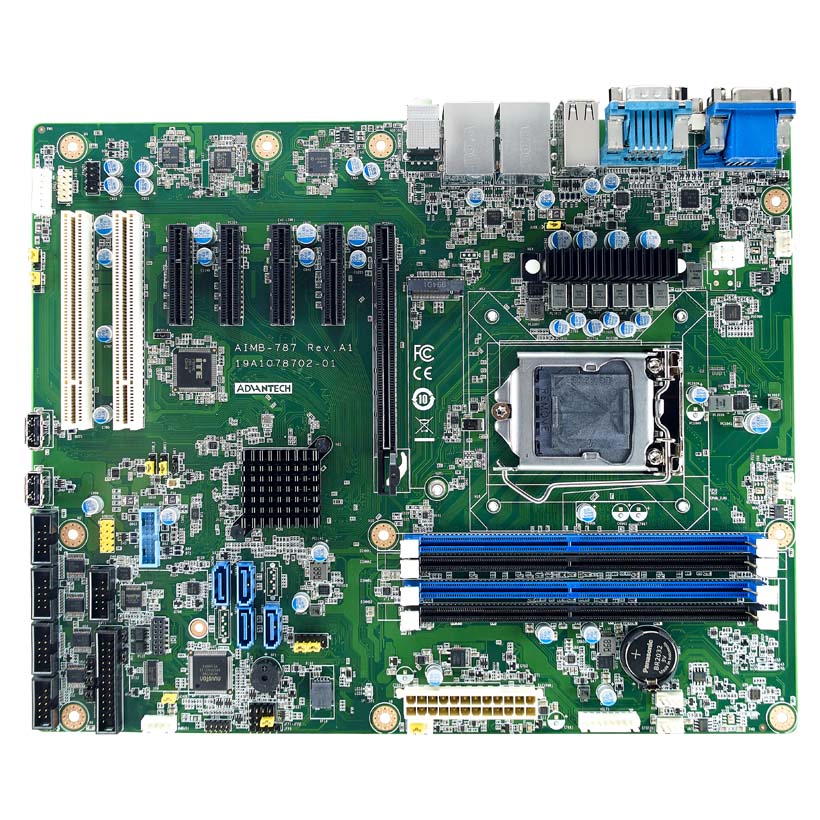

AIMB-787

產(chǎn)品分類(lèi)：ATX主板
Intel? 10th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with Q470E chipset
Four DIMM sockets up to 128 GB DDR4 2933
Triple display DP/DVI-D/VGA and dual GbE LAN
M.2, SATA RAID 0, 1, 5, 10, USB 3.2
Supports Intel vPro, AMT & TPM technologies
Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn
Note 1: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
Note 2: Legacy platform is not supported.
Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
