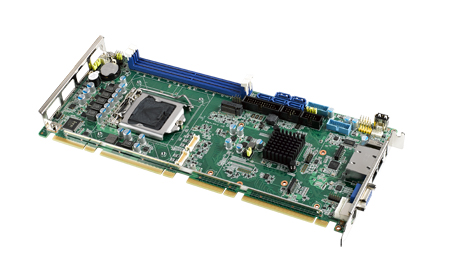

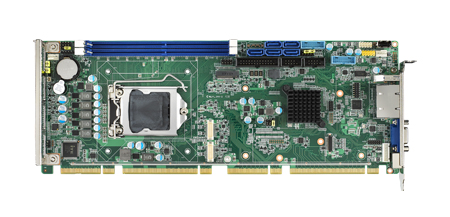

PCE-7129

產品分類：PICMG 1.3 System Host Boards (SHB Express)
Supports Intel Xeon E3-1200v5 series, Core? i7/i5/i3 LGA1151 processors with C236
Dual Channel (ECC/Non-ECC) DDR4 2133/1600 up to 32 GB
Supports PCIE 3.0, M.2, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
Supports CRT and 2 x DVI-D/DP(cable optional) display
Supports out-of-band remote management with AMT10 and IPMI
Supports Advantech LPC modules
Supports SUSIAccess and Embedded Software APIs
